Platform-Powder Packaging System

1. Product Overview

The stainless steel platform is the structural element that provides safe elevated working space for operators, inspection and maintenance inside a powder packaging system. The product described here is the Powder Edition — Anti-Static Elevated Platform for Dusty Environments, engineered for powder workshops handling flour, starch, milk powder and seasoning powders. It does two jobs: it lifts operators safely to the working height of big bag unloading stations, feeding stations and filling stations; and it answers, with dedicated structural solutions, the two central risks of a dusty environment — difficulty in cleaning accumulated powder and static electricity / explosion hazard.

Within the Globule Sanitary Conveyor powder packaging system, the platform is not an optional accessory but an integrated working infrastructure designed together with unloading stations, feeding stations and protective frames. Operators must cut bag spouts, pat bags to assist discharge, watch material flow, sample and clear blockages — all several metres above the floor. A correctly designed platform decides whether these tasks are done safely, calmly and cleanly, or dangerously, awkwardly and messily.

2. Design Core: A Platform Redefined for Dusty Environments — Completely Different from Other Categories

Globule supplies stainless steel platforms across several product categories, and each category has a different design orientation. The Powder Edition is not a general-purpose platform; it is a dedicated structure for dusty environments:

General / packaging-line platform

● : mainly serves finished-pack inspection, palletising and checking; the focus is traffic, visibility and comfort, with no special dust or static requirements.

Wash-down environment platform

● : mainly serves wet cleaning stations; the focus is water resistance, drainage and corrosion resistance.

Powder Edition (this product)

● : the working atmosphere carries combustible dust, so the design logic revolves entirely around dust —

an open, transparent grating deck lets accumulated powder fall through instead of hiding on flat surfaces; a complete static-earthing path continuously drains static charge from operators' touch points and equipment into the ground; and a simple structure without horizontal dead zones can be swept of residual dust quickly and thoroughly

.

These three points — self-dropping powder, static drainage, easy cleaning — are the signature features that distinguish the Powder Edition from platforms of other categories. It carries not only people, but a whole set of dust-safety discipline.

3. Hygienic Design: Open Structure That Never Holds Powder

Cleaning in a powder workshop is never just "wiping clean"; it is "giving dust nowhere to hide". The Powder Edition platform supports this goal structurally:

● The deck uses

open grating panels

, so powder falling on the working surface drops through to the floor below for central collection by the workshop cleaning system — no secondary dust source builds up on the platform.

● The frame, handrails and kick plates are all food-grade stainless steel (304 recommended; 316L for corrosive environments), smooth, with no dust-holding recesses or burrs.

● Structural members are made from closed tube with sealed ends where possible so powder cannot creep inside and accumulate; welds are ground flush for easy blowing and wipe-down cleaning.

● No horizontal blind zones or shelf-like surfaces are left around the platform, making the "daily blow-down, periodic deep cleaning" regime of a powder workshop structurally achievable.

4. Explosion-Proof and Anti-Static Safety Design

In a combustible dust atmosphere, static discharge is one possible ignition source, so structural static management is a core function of the platform:

Continuous conductive path

● : the frame, handrails, grating deck, stair and protective frames are kept in reliable electrical contact with each other; the whole structure is bonded to the workshop earthing grid through

dedicated earthing terminals

, forming a low-impedance discharge path.

Anti-static details

● : every connection is treated to avoid "isolated conductor" metal parts that could accumulate charge and discharge suddenly.

Explosion-protection coordination

● : the steel structure itself does not accumulate surface charge the way plastic or coated parts do; on this basis, any electrical equipment fitted on the platform (lighting, controls) is selected and installed to dust/explosion requirements as an option, forming a complete dust-safety system together with explosion-proof motors and anti-static conveying equipment.

Verifiable earthing

● : earthing terminals are clearly located so that continuity can be checked with an instrument during daily inspection — turning "earthing is effective" from a paper requirement into a verifiable site condition.

5. Structure and Configuration

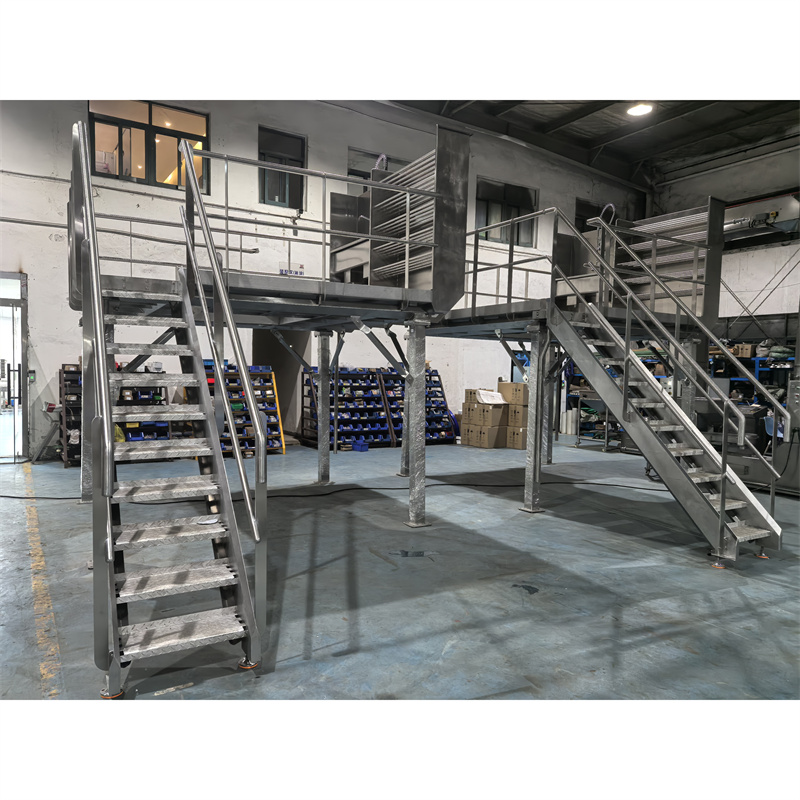

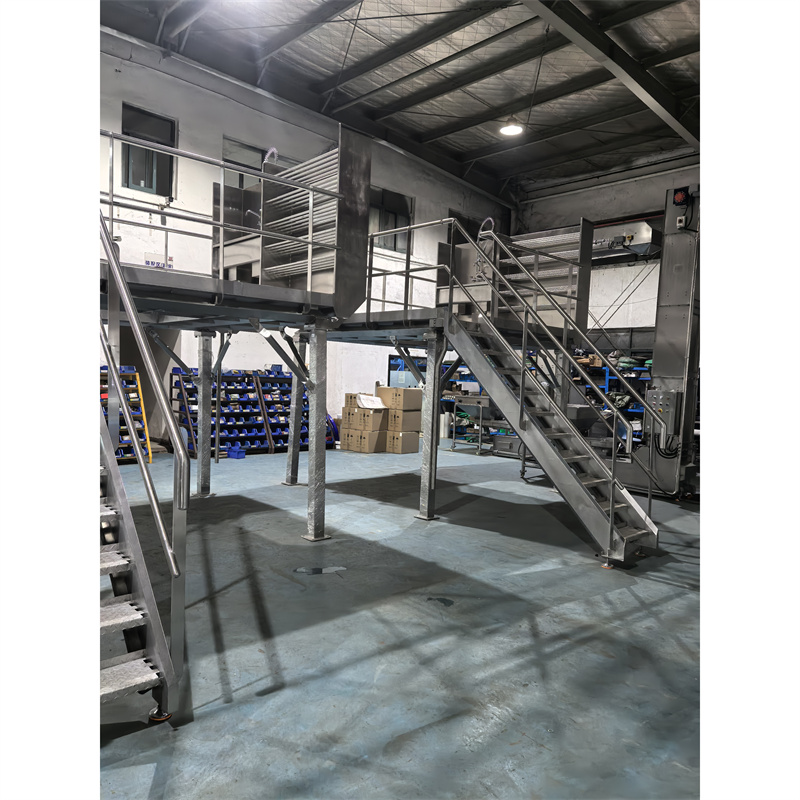

Powder Edition platforms are custom-built: platform height, area, loading, stair or ramp form, guardrail height and the position relative to unloading and filling stations are all confirmed against drawings. Common features include: straight or inclined stairs with handrails, guardrails with mid-rails, kick plates, safety gates or chains at the entrance, and mounting positions for bag-discharge assistance devices used with big bag opening work. Every platform is supplied with clear loading design information and foundation requirements; detailed parameters follow the technical drawings.

6. Application Scenarios

Suitable for the operator positions of big bag unloading stations (bag opening, patting, assisted discharge), high-level feeding positions of feeding stations, observation and operation positions of ton bag filling stations, equipment inspection walkways, and maintenance platforms above storage silos. Wherever people must work at height on equipment inside a dusty environment, the Powder Edition platform is the safe footing.

7. Why Choose Globule

Hygiene First · Safety First. Globule's platforms are designed and delivered by the same factory that builds the powder packaging machines, which means the platform is not a bolted-on "random steel frame" but a system component precisely aligned, interfaced and styled with the unloading and filling stations. Our engineering team knows FSMA hygienic design principles and dusty-environment safety requirements well, and can achieve "the right working height" and "safe structure" in one product.

8. FAQ

Q: Will tools and small parts fall through the open grating deck?

Grating openings follow anti-slip and safety regulations, balancing dust drop-through against object fall-through; fine-mesh liners or dedicated shelf zones can be fitted where small-part fall prevention is required.

Q: Does the platform need explosion-proof certification?

A steel structure itself produces no ignition energy; the key is earthing continuity and the explosion-proof selection of electrical equipment on it. We recommend configurations based on your duty and local codes; certification requirements follow the standards confirmed at project execution.

Q: Can a platform be retrofitted to an existing production line?

Yes. Platforms are custom-made to on-site measured dimensions, and we provide an installation plan with minimal impact on existing equipment.

9. Ordering Information

Please contact Shanghai Lingan (Globule Sanitary Conveyor) with your workshop layout drawing, equipment heights and operating requirements, and we will provide a platform proposal, loading notes and installation drawings.
