Turn Table-Nuts Packaging Weighing System

The Turn Table is an indispensable buffering and diversion device in the nut weighing and packaging system, positioned downstream of the packaging machine discharge. It performs the core functions of rotational buffering, directional alignment, and smooth product diversion for finished nut packages.

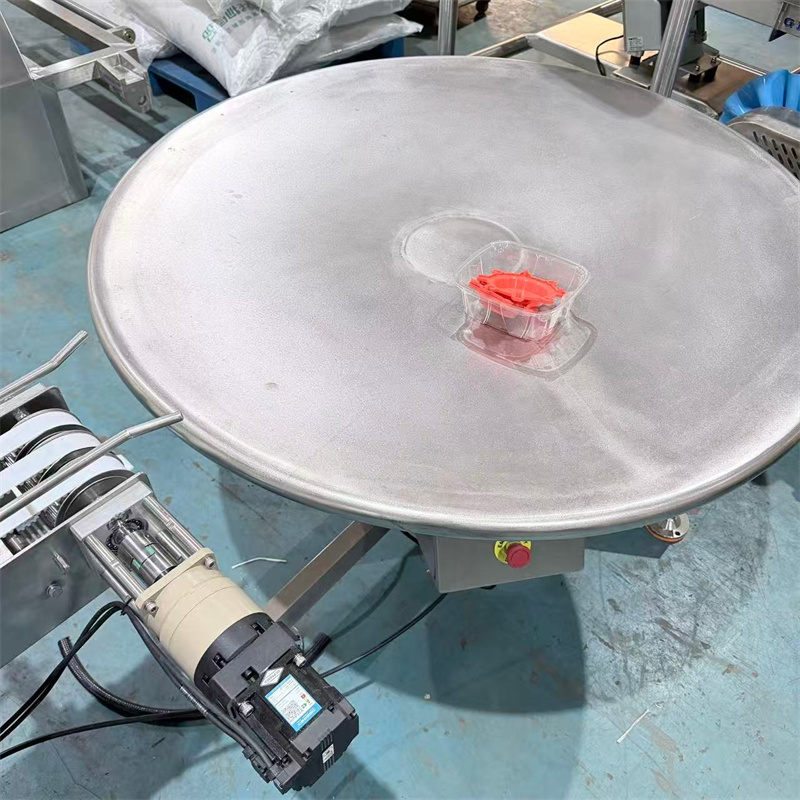

Nut products are high-value items with premium packaging. Any collision, package stacking, or dropping during conveying results in direct financial loss and compromised customer satisfaction. Globule's Turn Table uses a continuously rotating stainless steel disc as its core working surface. Through steady rotational motion, it distributes finished packages from the packaging machine across the disc surface via centrifugal expansion, eliminating package pile-up risks during momentary line speed imbalances. It provides a stable, orderly product flow for downstream case-packing, manual sorting, or automated palletizing operations.

Within the complete nut weighing and packaging line, the Turn Table serves as the "buffer" at the system's tail end — smoothing out the speed variations of the upstream packaging machine and the rhythm differences of the downstream case-packing process. It is the key node equipment for achieving stable full-line operation and minimizing downtime.

Core Design Advantages

1. Low-Speed Rotation + Centrifugal Expansion — Eliminating Package Stacking

The Turn Table's disc rotates at a low, constant speed. When finished nut packages arrive at the center of the disc from the packaging machine, the centrifugal force generated by rotation naturally disperses them toward the outer edge of the disc, forming an evenly distributed layer of packages. This physical dispersal mechanism prevents the common "package stacking" and "continuous blockage" problems seen in traditional linear conveyors when speed is mismatched. For premium packaging of high-value nuts such as macadamia and almond, every stacking collision is a loss — the Turn Table's rotational buffering eliminates this risk at its source.

2. Full Stainless Steel Disc Surface — Food Safety Compliant

The rotating disc surface and frame of the Turn Table are manufactured entirely from food-grade stainless steel, with a smooth, seamless, dead-zone-free surface that prevents nut fragments, nut oils, or seasoning powder from accumulating and harboring bacteria. Designed following FSMA sanitary guidelines, the disc surface can be rapidly and thoroughly cleaned with high-pressure water, steam, and food-grade detergents. Short cleaning cycles with verifiable results meet the high-frequency changeover hygiene maintenance requirements of modern food factories.

3. Low-Friction Drive — Zero Damage to Packaging Surfaces

Nut product packaging is often exquisitely designed, with printed graphics and glossy film materials that are highly sensitive to surface friction. Globule's Turn Table drive system is specifically optimized for low disc speed and minimal friction coefficient. Package movement on the disc surface is primarily translational diffusion — there is no aggressive dragging or forced redirection. This design achieves zero-damage protection for printed layers, glossy film, and seal integrity on packaging surfaces, ensuring every package delivered downstream maintains the same pristine condition it had when it exited the packaging machine.

4. Adjustable-Height Frame — Flexible Adaptation to Multiple Line Heights

Different nut packaging lines have varying conveying surface heights due to differences in equipment models, platform heights, and factory layouts. Globule's Turn Table is equipped with adjustable-height stainless steel legs, allowing installation personnel to precisely set the working surface height on-site to achieve a smooth handoff between the upstream packaging machine discharge and the downstream case-packing conveyor. No secondary machining or platform shims are required, significantly reducing on-site installation and commissioning costs.

5. Low-Noise Motor Drive — Compatible with Precision Packaging Environments

Nut weighing and packaging lines typically have high noise requirements — both for the protection of operators' working environment and as part of food factory GMP management. Globule's Turn Table uses a low-noise gear motor drive with minimal vibration, ensuring that the adjacent multihead weigher's precision weighing operations are not disturbed. This maintains consistent weighing accuracy and packaging quality throughout the full line.

Technical Specifications

Role in the Nut Weighing and Packaging System

The complete nut weighing and packaging system workflow positions the Turn Table at the system's end:

Bucket Elevator

1. — Gently elevates nut material from floor to multihead weigher platform (gentle buckets, anti-chipping)

Inclined Conveyor

2. — Low-angle, low-speed inclined conveying to elevator infeed, preventing rolling and breakage

Vibrate Feeder

3. — Even material supply to multihead weigher, maintaining stable weighing rhythm

Multihead Weigher

4. — High-precision gram-level weighing, ensuring zero-error net weight per package

Metal Inspection & Weighing Machine

5. — Finished package metal detection and weight verification, rejection of non-conforming units

Packaging Machine

6. — Bags and seals the weighed nut portions into finished packages

Turn Table (this unit)

7. — Receives finished packages, provides rotational buffering and dispersion for downstream case-packing

In this workflow, the Turn Table's rotational buffering function directly determines the throughput efficiency at the system's tail. When the packaging machine produces output fluctuations due to film changes, parameter adjustments, or brief faults, the disc's buffer capacity absorbs these fluctuations, preventing packages from piling up and falling at the exit, and guaranteeing continuous full-line operation efficiency.

Applicable Products

Globule's Turn Table in the nut weighing and packaging system is optimized for the following product types:

High-value nuts

● — Macadamia nuts, almond kernels, cashews, pistachios, pecans

Mixed nut packages

● — Finished packages of multi-variety nut blend portions

Nut gift packaging

● — Finished outer-bag buffering for premium gift-box nut products

Seasoned nuts

● — Finished packages of salt-roasted, honey, butter, and other flavored nuts

Why Choose Globule's Turn Table?

Designed for high-value product end-of-line buffering. Generic turn tables are typically designed for low-cost fast-moving consumer goods, with insufficient attention to surface friction and collision damage. Globule's Turn Table is optimized from the actual requirements of high-value, premium-packaged nuts — targeting disc rotation speed, surface smoothness, and guardrail height specifically — delivering true "damage-free" buffering for every finished package.

System-matched, seamless integration. As original-system-matched equipment for the nut weighing and packaging line, Globule's Turn Table has been co-designed and validated in height, interface dimensions, and operating rhythm with the multihead weigher, packaging machine, and metal inspection unit on the same line. On-site installation achieves seamless integration without additional commissioning adjustments.

Full-cycle delivery support. Globule provides complete delivery support from requirements confirmation, concept layout, equipment manufacturing, and system integration through to commissioning and operator training — ensuring the Turn Table performs to its design specification within the complete nut weighing and packaging system.
