Vibrate Feeder-Puffed Food Packaging Line

1. Product Overview

The Vibrate Feeder is the flow-control hub that connects bulk storage with high-speed weighing on a puffed-snack packaging line. Its job is not simply to push product forward, but to use controlled vibration frequency and amplitude to turn the chips, popcorn, nuts and other puffed products stored in the hopper into a uniform, constant-speed, start-stop controllable stream that feeds steadily into the infeed funnel of the multihead weigher. On a high-speed puffed line, the stability of the feeding stage directly determines whether the multihead weigher can run combination weighing at its maximum frequency: if the stream surges and dips, the scale is forced to wait or refill constantly, and both throughput and accuracy suffer. This machine is designed precisely for that pain point — large-capacity hoppers combined with high-speed constant-flow control deliver the stability needed for continuous production, keeping the downstream multihead weigher "always full and always even".

The product is designed and manufactured by Shanghai Linguan Equipment Manufacturing Co., Ltd. (Globule Sanitary Conveyor Pty Ltd). It is built entirely in food-grade stainless steel, complies with FSMA hygienic design criteria and follows the brand philosophy of "Hygiene First · Safety First".

2. Position in the Puffed-Snack Packaging Line

On a typical elevated puffed-snack line, the product flow is: inclined conveyor / bucket elevator → buffer hopper → vibrate feeder → multihead weigher → vertical bagging machine. The Vibrate Feeder sits between buffering and weighing, acting as a constant-flow valve:

● The upstream bucket elevator or buffer hopper supplies bulk product into the feeder hopper, creating buffer stock;

● The feeder spreads the product into a thin layer and discharges it at a constant volumetric rate, preventing bridging and flooding in the infeed funnel;

● The multihead weigher controls the feeder's start/stop and vibration intensity through its hopper-level signals, forming a closed loop that keeps continuous feeding stable even at very high throughput.

This combination of large bulk buffering and high-speed constant-flow output is what allows a puffed line to keep running continuously while the multihead weigher takes product at maximum speed — changeover and refilling never require the line to stop and wait.

3. Core Advantages: High-Capacity High-Speed Constant-Flow Control

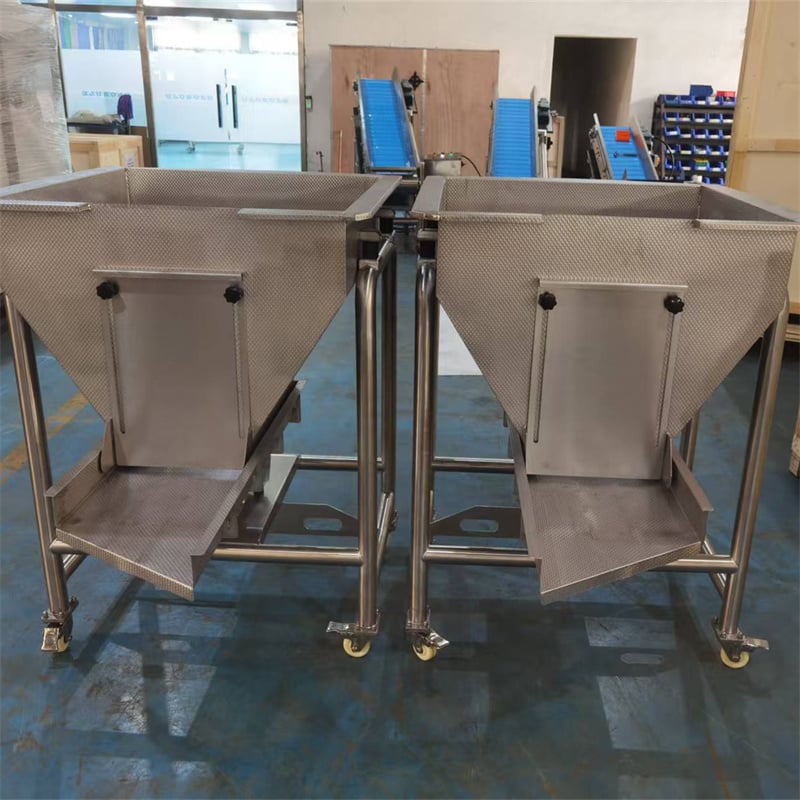

1. Large hoppers sustain high-speed continuous production. Single-body models FS02/FS03/FS04 are equipped with a 550×150×260 mm hopper, while twin-body models FS02/FS03 use a large 900×900×460 mm hopper. The generous storage absorbs short interruptions in upstream supply, so the feeder never starves the multihead weigher during continuous high-speed take-up, and line capacity is no longer limited at the feeding stage.

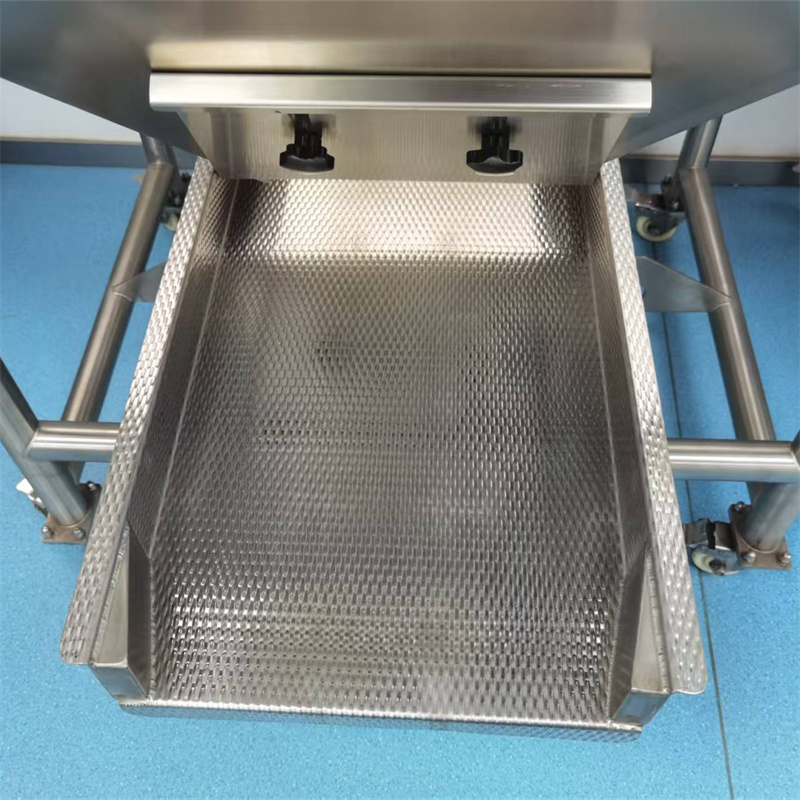

2. Constant-flow speed control — a stream as even as a tap. Vibration frequency and amplitude are finely adjustable. The feeder spreads puffed product into an even thin layer and delivers it continuously with a constant cross-section, eliminating pulsing, uneven dosing. For light, irregular and bridge-prone materials such as chips and popcorn, constant-flow output is the first guarantee of weighing accuracy.

3. Fast response, immediate start and stop. The feeder is interlocked with the level sensors of the multihead weigher: it immediately raises output when the level is low and narrows it as soon as the level is reached, with response times in milliseconds. During high-speed continuous production the scale never idles waiting for refill, so the single-line capacity is fully exploited.

4. Anti-bridging and anti-flooding design. Puffed snacks are fluffy and tend to arch in hoppers. The transition between hopper and trough uses large radii and an anti-bridge structure with vibration de-arching, ensuring smooth discharge even at high speed — with no sudden floods that could overload the weigh hoppers.

4. Structure and Hygienic Design

All-stainless contact surfaces

● : the hopper, trough and vibrating base are made of food-grade stainless steel with polished, dead-corner-free surfaces; oil and crumbs rinse away in seconds;

Fully washable

● : the vibrator motor is waterproof and wiring is concealed inside the frame, so the machine accepts direct high-pressure hose-down;

Quick disassembly

● : the trough and hopper use tool-free quick-release fixings and can be dismantled and cleaned within minutes — essential for the frequent sanitation required by high-oil puffed snacks;

Low noise, low vibration transfer

● : isolation supports keep high-frequency vibration away from the platform and the line, preventing resonance with precision equipment such as the multihead weigher and protecting weighing accuracy.

5. Technical Specifications (from the official catalogue)

6. Integration with the Whole Line

On a puffed line the Vibrate Feeder forms the tightest "feed–weigh" closed loop with the multihead weigher: the feeder holds the stream within the weigher's optimum combination window, while the weigher's hopper-level signal commands the feeder output in return. Upstream it connects with the inclined conveyor, bucket elevator, modular belt conveyor and stainless steel platform, which keep bulk product flowing into the hopper; downstream it is followed by the vertical bagging machine, take-off conveyor, metal-detector/checkweigher combo unit and quick-return conveyor to complete bagging and inspection. Globule designs the electrical control of the whole line, and the start/stop sequences and speed interlocks of the feeder and other machines are already logic-verified before shipment — on site it is plug-in-and-run.

7. Suitable Products and Conditions

● Potato chips, fabricated chips and other sheet-type puffed snacks (thin constant layer reduces overlapping);

● Popcorn, corn balls, rice puffs and other round products (large anti-bridge hopper, high-speed output);

● Nuts and mixed kernels (even single-layer feed for easy combination weighing);

● Other bulk snack foods requiring continuous high-capacity feeding.

8. Quality and Service

Shanghai Linguan Equipment Manufacturing Co., Ltd. was founded in 2019, and our engineering team has more than ten years of experience in food conveying and packaging-line design, strictly following FSMA hygienic design criteria. The Vibrate Feeder can be purchased as a single machine or as part of a turnkey weighing station together with the multihead weigher and bagging machine. We provide full drawings, hygiene documentation, bilingual operation manuals, on-site installation and commissioning, and remote maintenance support — safeguarding continuous and stable production for puffed-snack manufacturers.
