Platform-Two-in-one Confluence Line

1. Product Overview

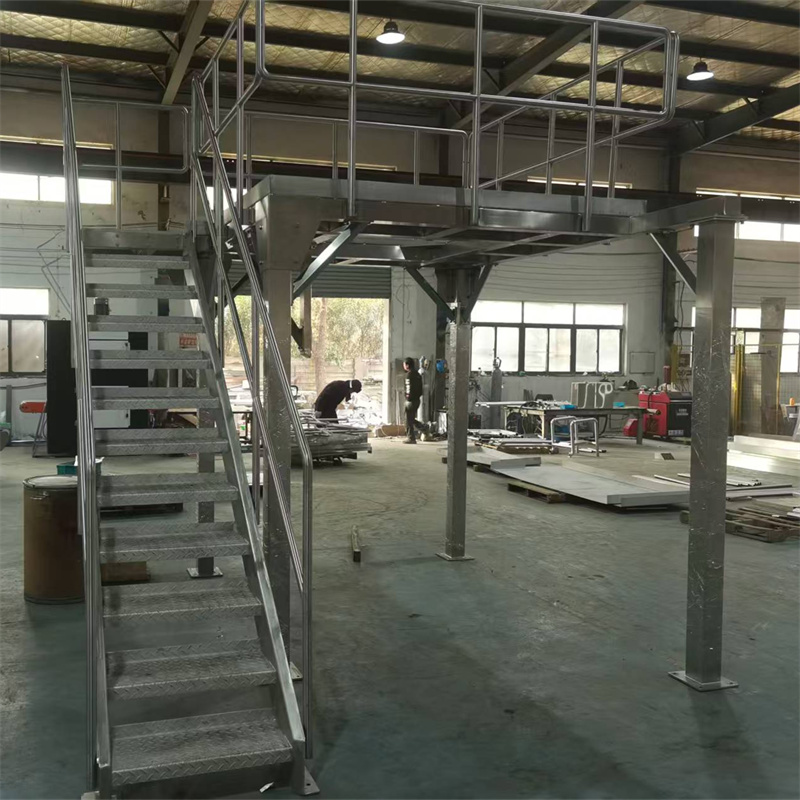

The SS (Stainless Steel) Platform is an elevated load-bearing steel structure designed by Globule Sanitary Conveyor Pty Ltd specifically for the "2-in-1 Merging Line". It is the skeleton of the whole line and the high ground above the foundation. It supports two bucket elevators and two multihead weighers at height so that product flows smoothly from top to bottom by gravity through the complete sequence of elevating, feeding, weighing, merging and bagging, creating three-dimensional space for continuous high-speed production.

Floor space in a food-packaging workshop is always precious. If the elevators, vibrate feeders, multihead weighers and packers were all laid out flat on the ground, the line would occupy an enormous area, and the machines would need many transfer conveyors between them — more handling, more breakage risk and more sanitary dead corners. The Globule SS Platform raises the weighing and elevating system high above the floor, leaving the ground level for operators, logistics and product flow, making the whole layout compact and efficient.

The platform is made of food-grade stainless steel throughout, with a strong, reliable load-bearing structure that safely supports the two weighers and two elevators under full load. Step ladders, walkways, guardrails and other safety facilities are complete and comply with industrial safety regulations, giving operators safe elevated access for inspection and maintenance. The design carries Globule's unified hygienic language across the line: round-tube handrails, concealed wiring, easy-to-clean surfaces and no dead corners, and the modular structure is quick to install on site and easy to expand later.

As the load-bearing spine of the 2-in-1 Merging Line, the SS Platform is not merely a foundation for equipment — it is the spatial guarantee for efficient, safe and hygienic operation of the entire line. It makes the elevated two-weigher/two-elevator layout possible, and lets limited workshop space deliver maximum production value.

2. Core Advantages

Advantage 1: Load-bearing structure tailor-made for two weighers and two elevators

The 2-in-1 Merging Line uses an elevated "two weighers + two elevators" layout: both bucket elevators and both multihead weighers are mounted on the platform at the same time. Under full load, static and dynamic demands on the platform are far higher than for an ordinary single-machine platform. The Globule platform is structurally calculated and reinforced around the actual weight distribution, vibration characteristics and product loads of the equipment, providing a solid elevated base that carries reliably and runs steadily.

Advantage 2: Gravity-flow layout — fewer machines, less space, less breakage

Once the elevator, feeder and weighers are mounted at height, product flows from elevating to weighing to merging and bagging entirely by gravity from top to bottom, without additional horizontal transfer conveyors and intermediate handling stages. The results: lower equipment investment, a smaller footprint and fewer transfers — and puffed products suffer less breakage and shattering in transit.

Advantage 3: Complete safety facilities — worry-free work at height

The platform is equipped with sturdy step ladders, generous walkways, code-compliant guardrails and toe boards, giving operators a safe route for daily inspection, feeding, cleaning and maintenance. Every safety component is designed and built to industrial safety standards — handrail height, rail spacing and anti-slip treads are all detailed properly — so working at height and servicing equipment is safe and reassuring.

Advantage 4: Line-wide hygienic design — no dead corners

The platform is made of food-grade stainless steel with smooth, easy-to-clean surfaces; round-tube handrails, concealed wiring and edge-free detailing prevent dust and foreign matter from hiding; structural members leave sensible cleaning gaps and the whole structure tolerates washdown, satisfying FSMA sanitary design guidelines. For a food plant that faces regular audits, a support structure that "stands up to close inspection" is itself a plus.

Advantage 5: Modular design — fast installation, easy expansion

The platform uses modular design with prefabricated parts assembled on site, predominantly bolted connections with minimal field welding — short installation time and high precision. When capacity expansion later requires extra equipment or a layout change, the modules can be dismantled, modified and extended flexibly, protecting the customer's long-term investment. Equipment-to-platform interfaces are unified because the whole line comes from one design system, so coordination is smooth.

3. Technical Specifications

4. Role in the 2-in-1 Merging Line

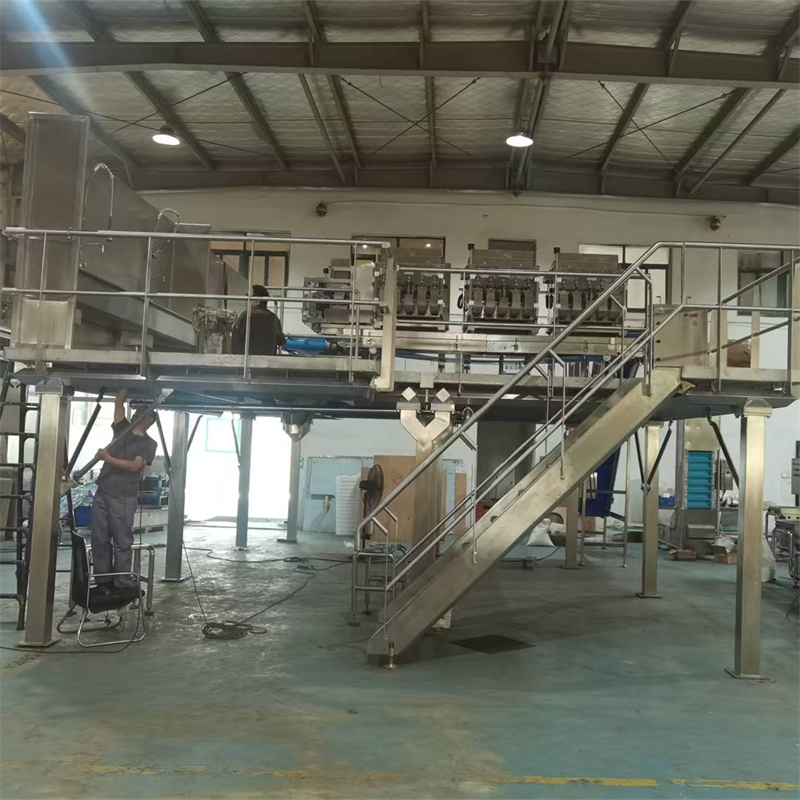

The "two-in, one-out" process of the 2-in-1 Merging Line dictates a three-dimensional layout: two bucket elevators must lift product from the material area, two multihead weighers must weigh at height, and the weighed product must merge by gravity into one vertical packaging machine. To organize all of this in a limited space, the stainless-steel platform is the unavoidable "spatial infrastructure".

In the system, the SS Platform performs three major functions. The first is load bearing: a reliable steel structure holds the two elevators, two weighers and their product securely at height so the machines run steadily even under high-frequency vibration and full load. The second is space release: valuable ground-level floor space is freed for the packaging machine, take-off conveyor, merging conveyor, Metal Inspection and Weighing Machine, plus operator walkways and logistics aisles — the line stays compact without being crowded. The third is connection: mounting datums and interfaces on the platform align the elevator, feeder and weighing equipment precisely in height, so the product flow runs without obstruction.

Without the SS Platform, the 2-in-1 Merging Line would have to spread flat across the entire workshop — efficiency and space would both be lost. With it, the two weighers and two elevators work together efficiently at height, continuously feeding the single VFFS packer. With one solid skeleton, the SS Platform holds up the whole "elevated, high-speed, efficient" structure of the 2-in-1 Merging Line.

5. Why Choose Globule

Designed for the 2-in-1 system

● : platform parameters correspond one-to-one with the two-elevator/two-weigher layout — load rating, interfaces and height are all custom-engineered for the system, not patched from generic racking.

Structure and hygiene in one

● : food-grade stainless steel, round-tube handrails, concealed wiring, easy cleaning and no dead corners — a load-bearing structure that is also a hygiene benchmark.

Safety standards met

● : ladders, walkways, guardrails and toe boards are all in place to industrial safety requirements, protecting work at height.

10+ years of engineering experience

● : from structural calculation to on-site installation, our team's experience keeps installation accuracy and delivery under control.

Modular and expandable

● : when the line is later accelerated or expanded, the platform can be modified flexibly, protecting your long-term investment.
