Bucket Elevator-Nuts Packaging Weighing System

Product Position: A "Gentle Carrier" for High-Value NutsIn the nut weighing and packaging system, the bucket elevator performs the essential duty of lifting macadamia nuts, blanched almond kernels and similar materials from the lower floor to the elevated hopper of the multihead weigher. Unlike ordinary bulk-material bucket elevators, the Globule nut-line bucket elevator was designed around one core proposition from day one — high-value nuts cannot afford rough handling. A single whole, plump macadamia nut or a perfectly intact almond kernel directly determines the grade and selling price of an entire batch. We define this machine as the "gentle carrier" of high-value nuts: low speed, small buckets and soft, drop-free transfer keep every nut in a protected state throughout the vertical lift.

Real Pain Points in the Nut Scenario
The most common loss suffered by nut grading and packaging plants is rarely created in the processing step itself — it is created by "rough transport" between machines. Conventional high-speed elevators with large buckets scoop, fling and drop product, causing nuts to collide with one another and slam against bucket walls. The direct result is shell breakage, broken kernels and surface scratches. For high-value materials such as macadamia nuts — hard-shelled yet delicate — and almond kernels that must keep their whole-kernel appearance, any rise in the breakage rate immediately multiplies financial loss. This is precisely the fundamental difference between a Globule nut elevator and a general-purpose one.

Six Design Features for Gentle Lifting

1. Low-speed operation.
The machine is fully frequency-controlled and runs in a low-speed range tuned to nut characteristics. Buckets travel smoothly and scoop material gently, suppressing flinging and drop impact at the source.

2. Small buckets with precise discharge.
Bucket capacity is matched to the rhythm of small-batch precision weighing. Each bucket carries a small, even load, and the top discharge cooperates tightly with the next-stage receiving device, producing a stable, controllable product flow that feeds the multihead weigher with uniform material.

3. Soft, drop-free transfer.
Both the inlet and the outlet are fitted with cushioning and guide structures. Nuts never experience free fall at equipment joints — they "slide" along guide surfaces from one stage to the next, minimizing impact.

4. Hygienic buckets and contact surfaces.
Buckets are deep-drawn from food-grade stainless steel with no sharp corners and no dead zones. The enclosed casing keeps dust and foreign matter away from the high-value product zone while preventing spillage and waste.

5. Damage-prevention details.
Interior surfaces are smooth with no weld slag and are finished with transition radii. An automatic tensioning mechanism prevents chain slack, eliminating vibration and slapping; low running noise further confirms the "gentle treatment" of the product.

6. Easy cleaning and maintenance.
The enclosed casing is fitted with service doors and inspection windows so operation is visible at a glance. The whole structure is easy to disassemble and wash, matching the daily cleaning and sanitation routines of a food factory.

Hygiene First · Safety First
Founded in 2019, our engineering team brings more than a decade of food and sanitary conveying experience and designs every machine in strict compliance with FSMA sanitary design principles. Every part of the bucket elevator that contacts nuts is made of food-grade stainless steel and food-contact materials, with smooth welds, drainable construction and no sanitary dead spots — meeting the cleaning standards of high-grade nut processors.

System Integration and Selection

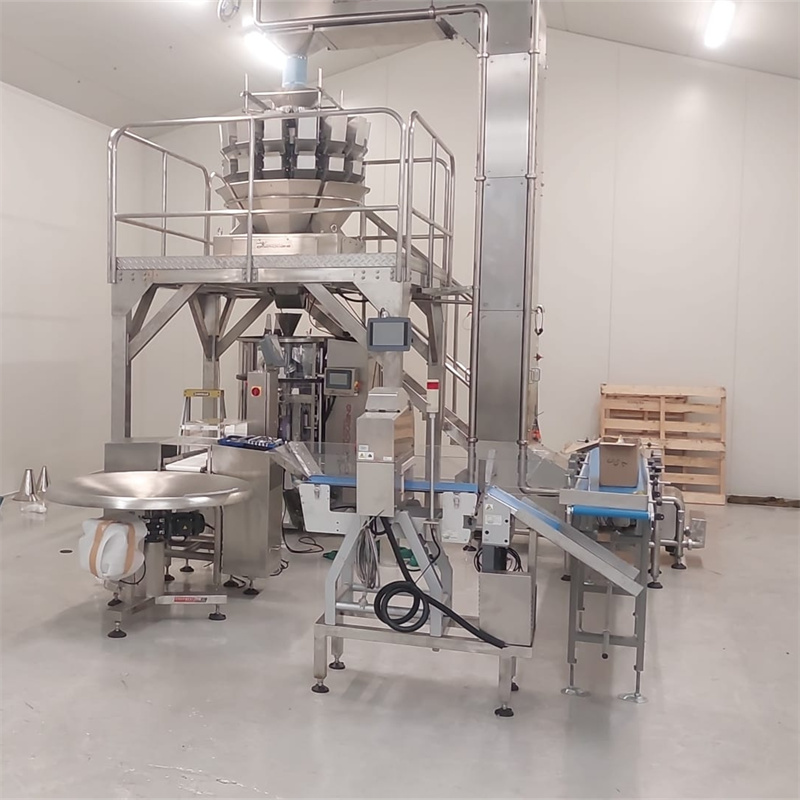

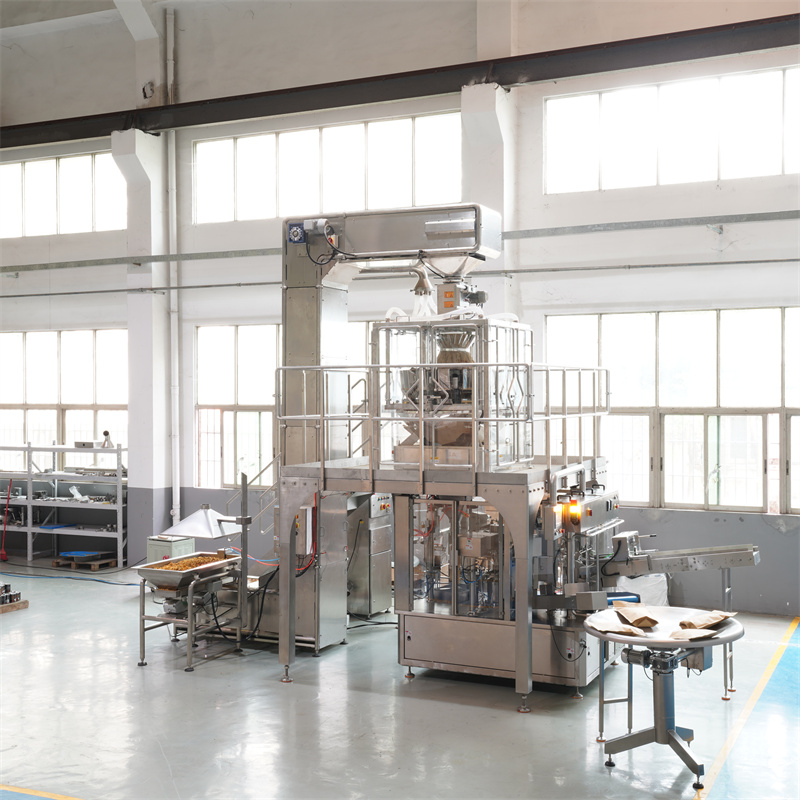

The Globule nut weighing and packaging system consists of the multihead weigher, stainless steel platform, bucket elevator, inclined conveyor, vibratory feeder, checkweigher-combination machine and transfer turntables. Our bucket elevator can be customized in lift height, bucket specification and discharge direction to match your plant layout and packing rhythm, connecting seamlessly with the multihead weigher's elevated hopper and the inclined conveyor to create a continuous, flexible material flow of lifting → weighing → packing.

Choosing a Globule nut bucket elevator means choosing respect for every high-value nut — fewer impacts, better appearance, and more profit for your business.

Technical and Application Notes

Speed that follows the product, not the other way around.
The variable-frequency drive is not a fixed setting but an operating envelope: the line supervisor can reduce the elevator speed further when handling extra-fragile grades such as thin-shelled macadamia or roasted almond kernels, and raise it within the safe window for firmer products. Because buckets are small and loads are light, even the upper end of the envelope never produces the violent scooping and flinging typical of conventional units.

Smooth handover to the weighing stage.
Elevator discharge is the point where most bulk systems create surges that confuse downstream weighing. Our elevator's regulated small-bucket discharge, combined with the buffer section at the weigher hopper, delivers a level material flow — which measurably stabilizes the feed consistency the multihead weigher relies on for tight gram control.

Dust control as standard.
The enclosed casing is vented in a controlled way so fine nut dust and fragments are contained rather than blown across the workshop; cleaning access is designed in, not improvised.

Built around your layout.
Lift height, discharge direction, inlet position and bucket size are engineered per project. Our engineers survey your plant, confirm clearances and access, and deliver an elevator that slots into the line with minimal civil work.

Service and Support
Every Globule machine is backed by the manufacturer's engineering team: on-site installation guidance, commissioning and operator training; a responsive spare-parts service for buckets, chains and sensors; and documentation covering maintenance, sanitation and troubleshooting in both Chinese and English. We build equipment we are willing to maintain ourselves — that is the standard our ten-plus-year engineering heritage demands.
